VHX Backs to Normal Production and Open for Business

2020-04-14 12:35:45
VHX is a professional gasketed plate heat exchanger manufacturer with more than 15 years experience, we manufacture and export plate heat exchangers and related spares such as replacement plate and gasket for HX. Because of the # Covid-2019, the whole industrial markets are confronted with severe challenge, after the effort of our government and the cooperation of our people, we’ve got quite good result against this virus war.

We have been back to normal production for more than a month and we have sufficient stocks and production capability to serve our customer as usual.
Given the worldwide epidemic situation still very serve, VHX want to do something to help the situation, now besides the normal PHE products, we also supply protection mask to our customers, if you have related demands, please reach out to me for details.


Get In Touch

Recommend Read

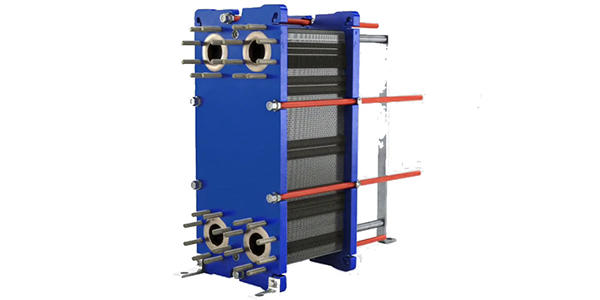

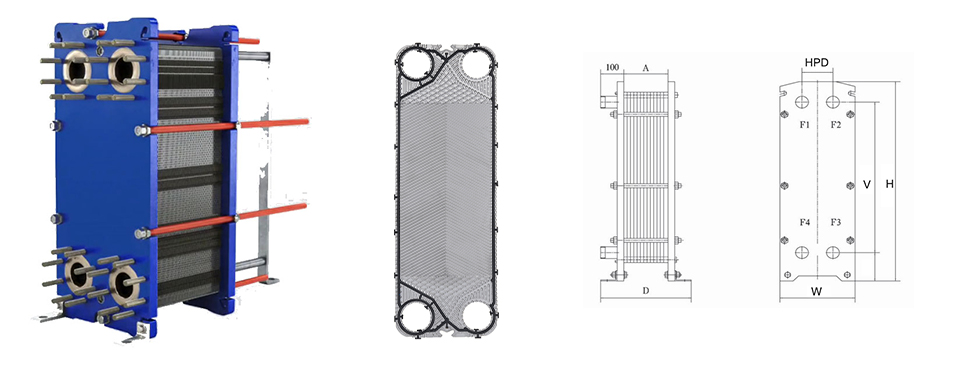

  • Gasketed Plate Heat Exchanger VHX151

    2019-07-29 11:11:14

    VHX supply gasketed plate heat exchangers from 0.03m2 to 1.8m2 for different application requirements. We manufacture plate heat exhcanger for replacement models and our own brand models, available calibre from DN25 to DN350.

    gasketed plate heat exchanger


    Model Height Width Min Standard Length Max Standard Length Vertical Port Distance Horizontal Port Distance Connection
    VHX25 480 180 20 350 357 60 DN25
    VHX51 940 330 35 600 640 140 DN50
    VHX52 920 320 25 450 640 140 DN50
    VHX61 835 325 50 630 625 130 DN65
    VHX62 1085 325 50 630 875 130 DN65
    VHX101 1084 470 120 950 719 225 DN100
    VHX102 1084 470 80 640 719 225 DN100
    VHX103 1235 500 115 1125 882 234 DN100
    VHX104 1655 500 115 1125 1302 234 DN100
    VHX151 1885 650 235 1410 1294 298 DN150
    VHX152 1885 610 160 1255 1294 298 DN150
    VHX201 2055 730 235 1645 1478 342 DN200
    VHX301 2086 1125 215 2580 1320 600 DN300
    VHX351 2920 1190 210 3360 1842 596 DN350
    Available plate material: AISI304/AISI316/Titanium/Nickel/Alloy C-276/254 SMO
    Available gasket material: NBR/EPDM/HNBR/NBR-HT/EPDM-HT/Viton-A/FKM/Viton-G/FKM/CR
    Available connection material: rubber/stainless steel/unlined/flange

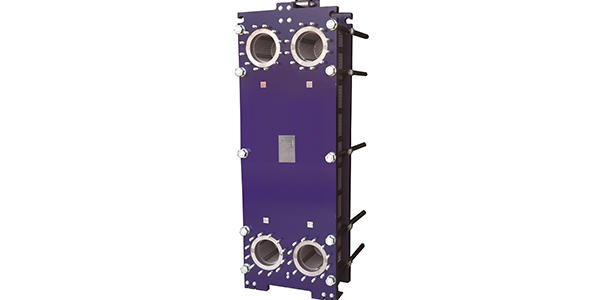

  • Plate heat exchanger VHX102

    2019-07-29 11:11:14
    VHX supply plate heat exchangers from 0.03m2 to 1.8m2 for different application requirements. We manufacture plate heat exhcanger for replacement models and our own brand models, available calibre from DN25 to DN350.
     Thermowave Plate Heat Exchanger Gasket
    Model Height Width Min Standard Length Max Standard Length Vertical Port Distance Horizontal Port Distance Connection
    VHX25 480 180 20 350 357 60 DN25
    VHX51 940 330 35 600 640 140 DN50
    VHX52 920 320 25 450 640 140 DN50
    VHX61 835 325 50 630 625 130 DN65
    VHX62 1085 325 50 630 875 130 DN65
    VHX101 1084 470 120 950 719 225 DN100
    VHX102 1084 470 80 640 719 225 DN100
    VHX103 1235 500 115 1125 882 234 DN100
    VHX104 1655 500 115 1125 1302 234 DN100
    VHX151 1885 650 235 1410 1294 298 DN150
    VHX152 1885 610 160 1255 1294 298 DN150
    VHX201 2055 730 235 1645 1478 342 DN200
    VHX301 2086 1125 215 2580 1320 600 DN300
    VHX351 2920 1190 210 3360 1842 596 DN350
    Available plate material: AISI304/AISI316/Titanium/Nickel/Alloy C-276/254 SMO
    Available gasket material: NBR/EPDM/HNBR/NBR-HT/EPDM-HT/Viton-A/FKM/Viton-G/FKM/CR
    Available connection material: rubber/stainless steel/unlined/flange

    Thermowave Plate Heat Exchanger Gasket

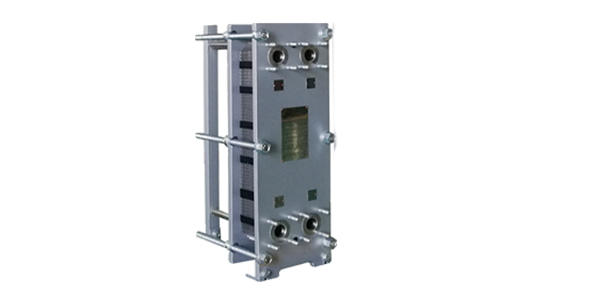

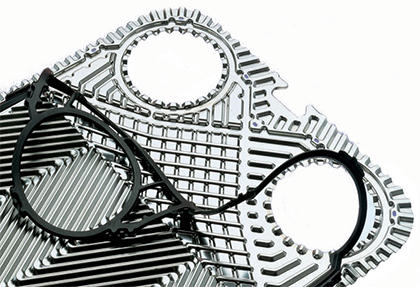

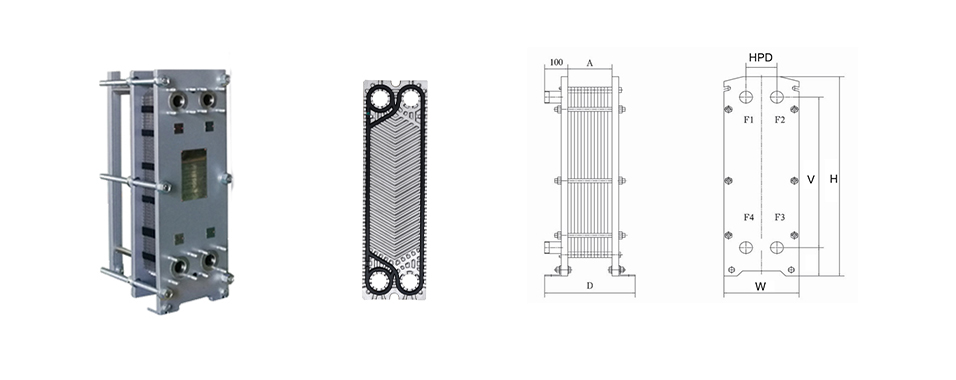

  • Heat Exchanger Plate VHX25

    2019-07-04 16:15:04

    VHX supply heat exchanger plates from 0.03m2 to 1.8m2 for different application requirements. We manufacture plate heat exhcanger for replacement models and our own brand models, available calibre from DN25 to DN350.


    Model Height Width Min Standard Length Max Standard Length Vertical Port Distance Horizontal Port Distance Connection
    VHX25 480 180 20 350 357 60 DN25
    VHX51 940 330 35 600 640 140 DN50
    VHX52 920 320 25 450 640 140 DN50
    VHX61 835 325 50 630 625 130 DN65
    VHX62 1085 325 50 630 875 130 DN65
    VHX101 1084 470 120 950 719 225 DN100
    VHX102 1084 470 80 640 719 225 DN100
    VHX103 1235 500 115 1125 882 234 DN100
    VHX104 1655 500 115 1125 1302 234 DN100
    VHX151 1885 650 235 1410 1294 298 DN150
    VHX152 1885 610 160 1255 1294 298 DN150
    VHX201 2055 730 235 1645 1478 342 DN200
    VHX301 2086 1125 215 2580 1320 600 DN300
    VHX351 2920 1190 210 3360 1842 596 DN350
    Available plate material: AISI304/AISI316/Titanium/Nickel/Alloy C-276/254 SMO
    Available gasket material: NBR/EPDM/HNBR/NBR-HT/EPDM-HT/Viton-A/FKM/Viton-G/FKM/CR
    Available connection material: rubber/stainless steel/unlined/flange

  • Method for cleaning vicarb heat exchanger plate

    2020-02-06 17:25:09
    Vicarb heat exchanger plates have been widely used in some areas such as central heating and chemical industry. The plate heat exchanger has a good heat exchange effect, but it is prone to produce scale and impurities, which will block the flow of the plate heat exchanger and reduce the heat exchange effect. So, how to clean the plate heat exchanger?Plate heat exchangers can be disassembled and recirculated.

    Disassembly and cleaning steps:
    Disassembly and cleaning can clean both processes of the heat exchanger. The main steps are:
    1. Close the two water inlet and outlet valves of the heat exchanger;

    2. Measure the distance between the baffles of the heat exchanger and make a record;

    3. Disassemble the plate heat exchanger, empty the medium in the equipment, disassemble in the prescribed order, and make a record. Be careful not to damage the gasket and the plate during the disassembly process;

    4. During the cleaning process, the plates should be cleaned piece by piece, and soaked and washed. In the case of high-pressure cleaning, the cleaning should be performed below the specified pressure;

    5. After processing, put it back in the plate heat exchanger baffle in the original order, paying attention to distinguish the front and back. Control the strength when tightening the clamping bolts firmly, otherwise it is easy to crush the plate;

    6. Open the outlet valve and inlet valve of the plate heat exchanger to see if there is any leakage. If there is no leakage, the cleaning is complete.

    Cycle cleaning steps:
    If it is used in the chemical industry, firstly close the inlet and outlet valves of the plate heat exchanger, and add the cleaning agent to the system through a tube pump or a water tank for internal circulation until the concentration of the cleaning agent no longer changes and the impurities in the equipment are discharged.

    If it is a passivation treatment, it is necessary to ensure that after the chemical descaling is completed, no rust or other phenomena will occur in the pipeline. The amount of passivation cleaning solution needs to be determined according to the amount of water during cleaning, and the ph value cannot be too high, otherwise the effect will be poor, and it will be discharged after six hours.

    Finally, the plate heat exchanger was restored, and the inlet and outlet water valves were opened, indicating that the cleaning was completed.

  • The role and advantages,disadvantages of plate heat exchangers

    2020-01-27 17:14:32
    Plate heat exchangers are a type of mobile device that transfers heat between metal plates because the liquid is spread over more surfaces, which increases the exchange rate. Metal tubes are used to heat fluids.

    The role of plate heat exchangers
    The plate heat exchanger is based on different external and internal components, the welding plate exchange plates are welded together, and the brazed plate type construction model is vacuum brazed. In many cases, in order to make smaller sections work better, some chambers are designed to be thinner, allowing most of the liquid to contact the plate, improving heat transfer.

    The plate heat exchanger can play a good heat transfer effect in the boiler heating in winter. In the daily use process, it is necessary to do a good job of protecting this equipment. The plate heat exchanger is a kind of equipment that can play multiple benefits and functions for us. The user clearly knows its role and protects it so that it can play a greater role.

    Advantages of plate heat exchangers
    High heat transfer coefficient. The plate heat exchanger has a small flow channel, the plates are wavy, and the cross-section changes are complex, which makes the flow direction and velocity of the fluid constantly change, which increases the disturbance of the fluid and has a high heat transfer coefficient.

    Great adaptability. The required heat transfer area can be achieved by increasing or decreasing the plate. A heat exchanger can be divided into several units, which can be used for heating or cooling between several fluids at the same time.

    Compact structure, small size and few consumables. The heat transfer area per cubic meter volume can reach 250m2, and the heat transfer surface per square meter only needs about 15kg of metal.

    Dirt factor is small. Due to the large flow disturbance, dirt is not easily deposited. The plate heat exchanger plate is of good material and has little corrosion, which makes its fouling coefficient value smaller. Plate heat exchangers mainly use metal plates, so the price of raw materials is cheaper than the same metal pipes.

    Disadvantages of plate heat exchangers
    1) Poor sealing and easy to leak. The gasket needs to be replaced frequently, which is troublesome.
    2) The use pressure is limited, and generally does not exceed 1MPa.
    3) The use temperature is limited by the temperature resistance of the gasket material.
